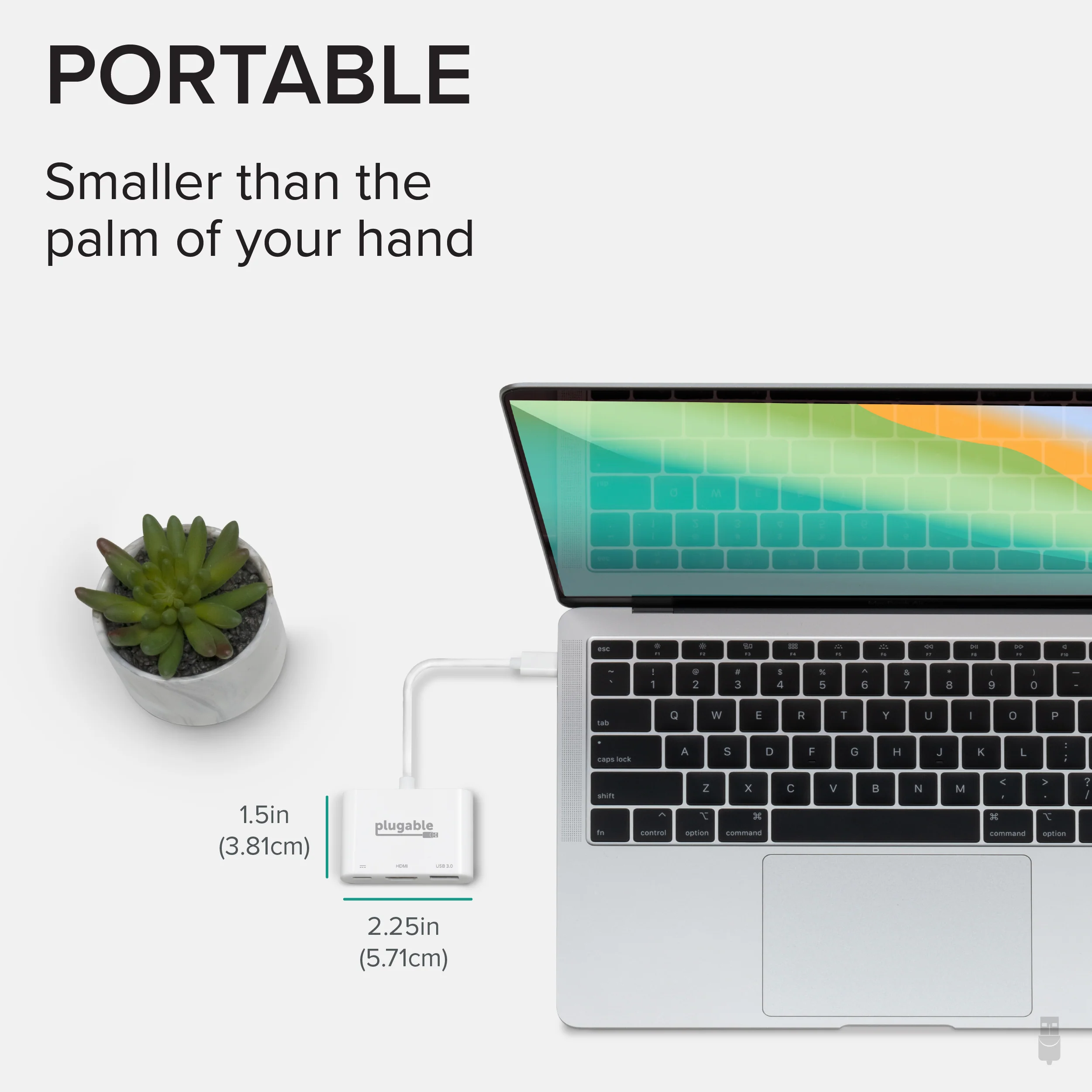

Plugable's USB-C Mini Dock enables you to connect an external monitor, USB peripheral and USB-C power adapter to a USB Type-C or Thunderbolt 3 supported system. The compact size of this USBC multi port adapter allows for ultra portability and removes the need to carry multiple dongles that could occupy other valuable ports



Performance

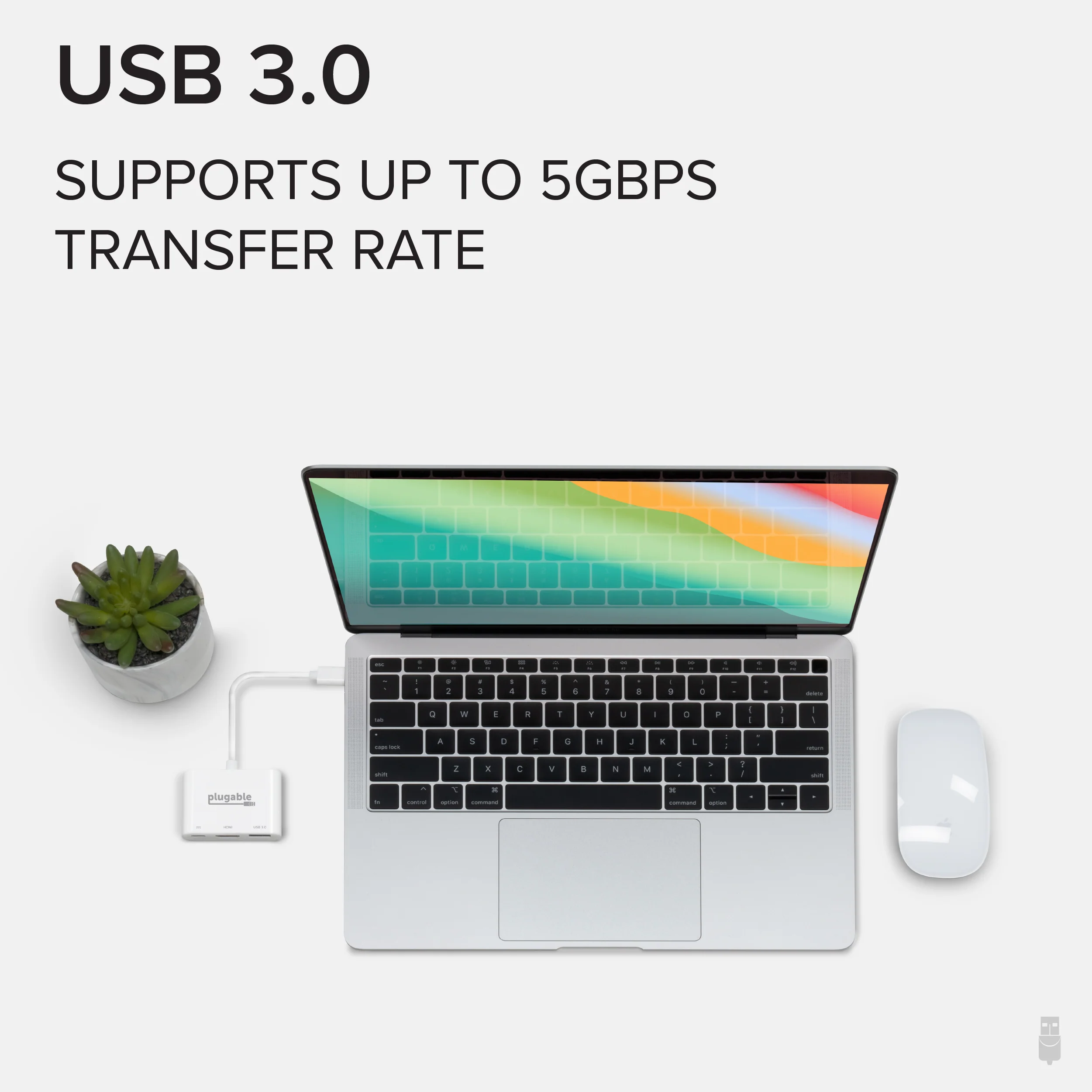

The Plugable Thunderbolt multiport adapter leverges the USB-C DisplayPort Alt Mode and USB Power Delivery technologies to support an external monitor and Power Delivery functions. It offers a USB 3.0 Type-A port that supports data transfer speeds up to 5Gbps. The USB C to hdmi with charging port is entirely USB bus powered and does not require a power supply to work. Please note: disconnecting the system's USB power adapter when plugged into the USB C digital AV multiport adapter will disconnect the connected monitor and USB device and they should autmatically reconnect
The HDMI 1.4 port on the HDMI to USB C adapter can support resolutions up to 3840x2160@30Hz and 1080p resolutions at 60Hz

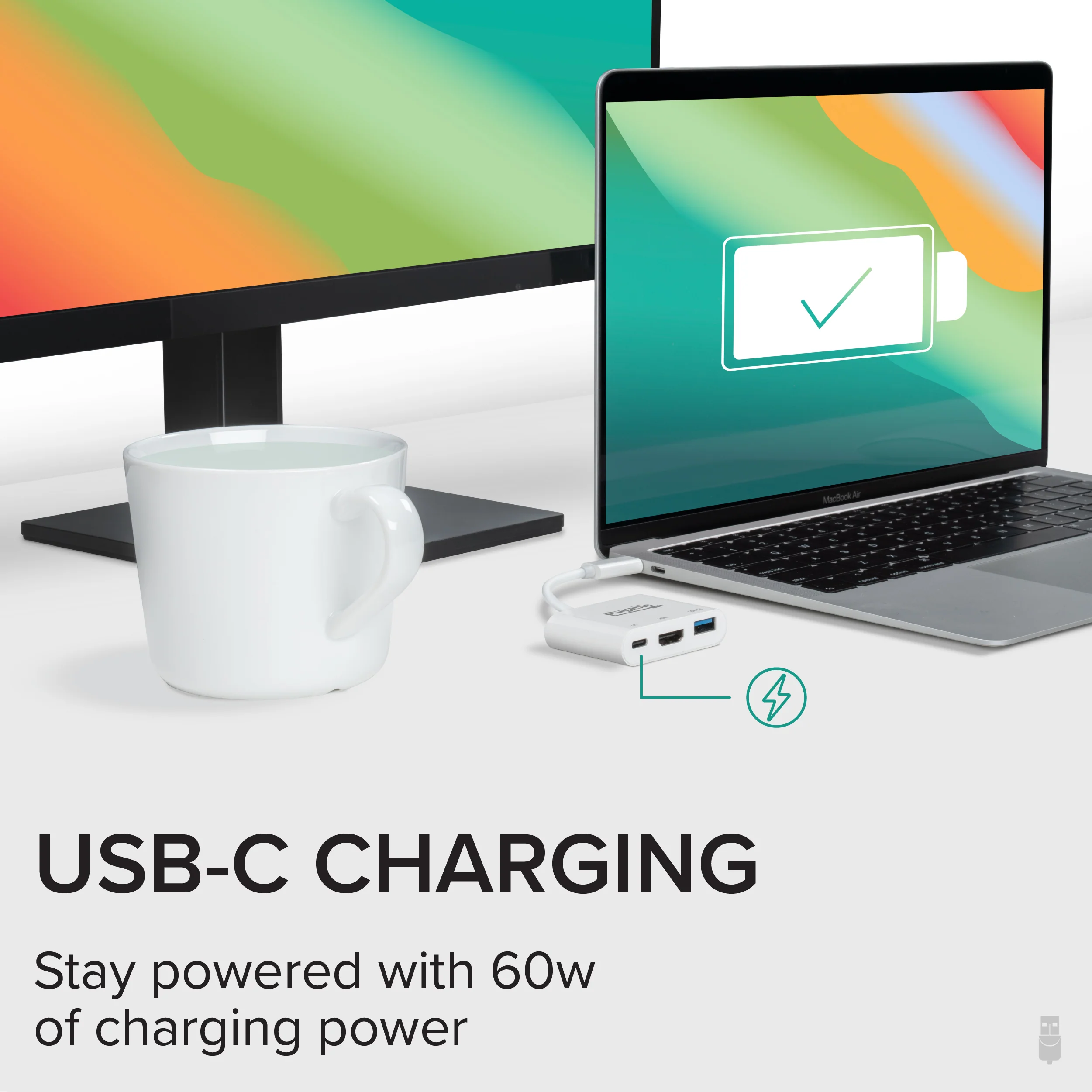

Charge your system's battery using the USB hub's USB-C power adapter while conencted to the USB-C 3.0 Power Delivery input port (5-20v @ 3A)



Compatibility
Compatible with Windows, macOS and Chromebook systems with a USB-C port that supports DisplayPort Alternate Mode, USB Power Delivery or Thunderbolt 3. Our adapter has been tested on the MacBook Pro, HP Spectre x360, Dell XPS, Lenovo ThinkPad and many other systems with compatible USB-C or Thunderbolt 3 ports.
Not compatible with USB Type-A systems even when used with USB Type-A to USB Type-C adapters.
The host system and connected monitor must support the desired resolution. The host system must also support Power Delivery over USB-C in order for charging functions to work
